$122.99

SKU: SKUNeqlMW1Ce5 Categories: Power Tools, Routers And Trimmers, Woodworking Tools Tag: Bosch Brand: Bosch

Description
Reviews (0)

Product Features & specs :

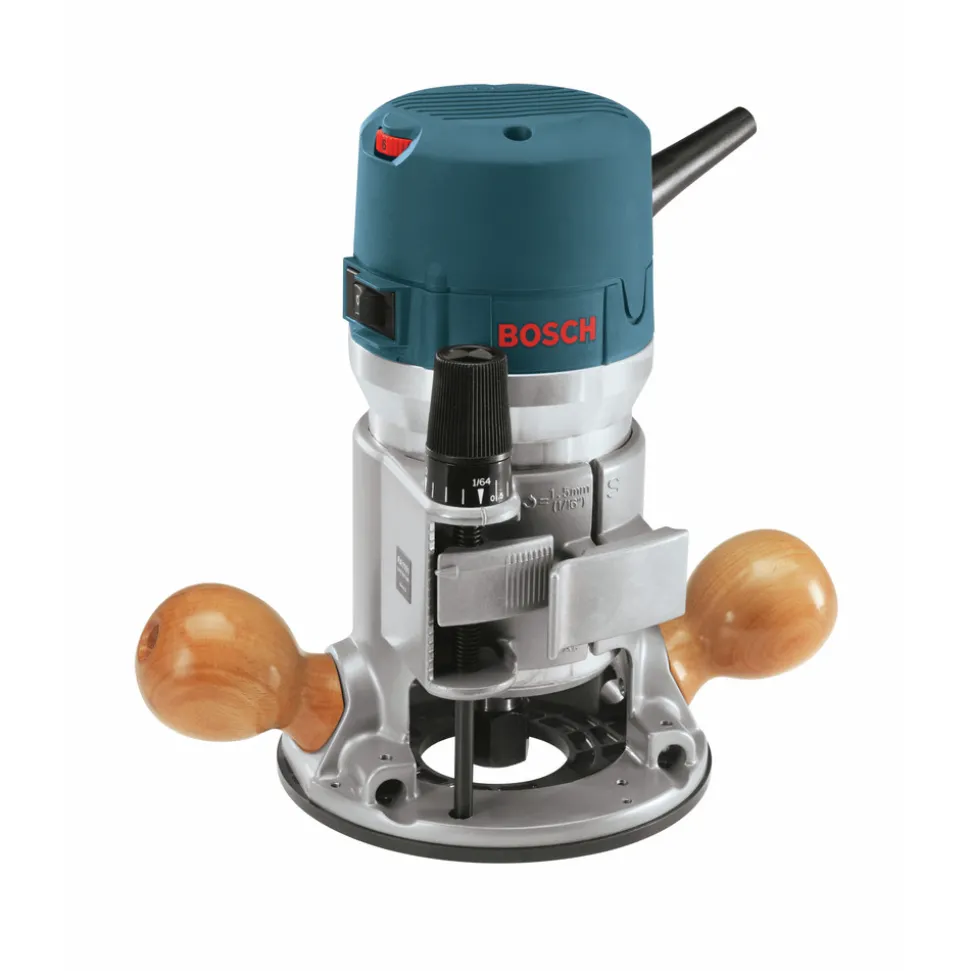

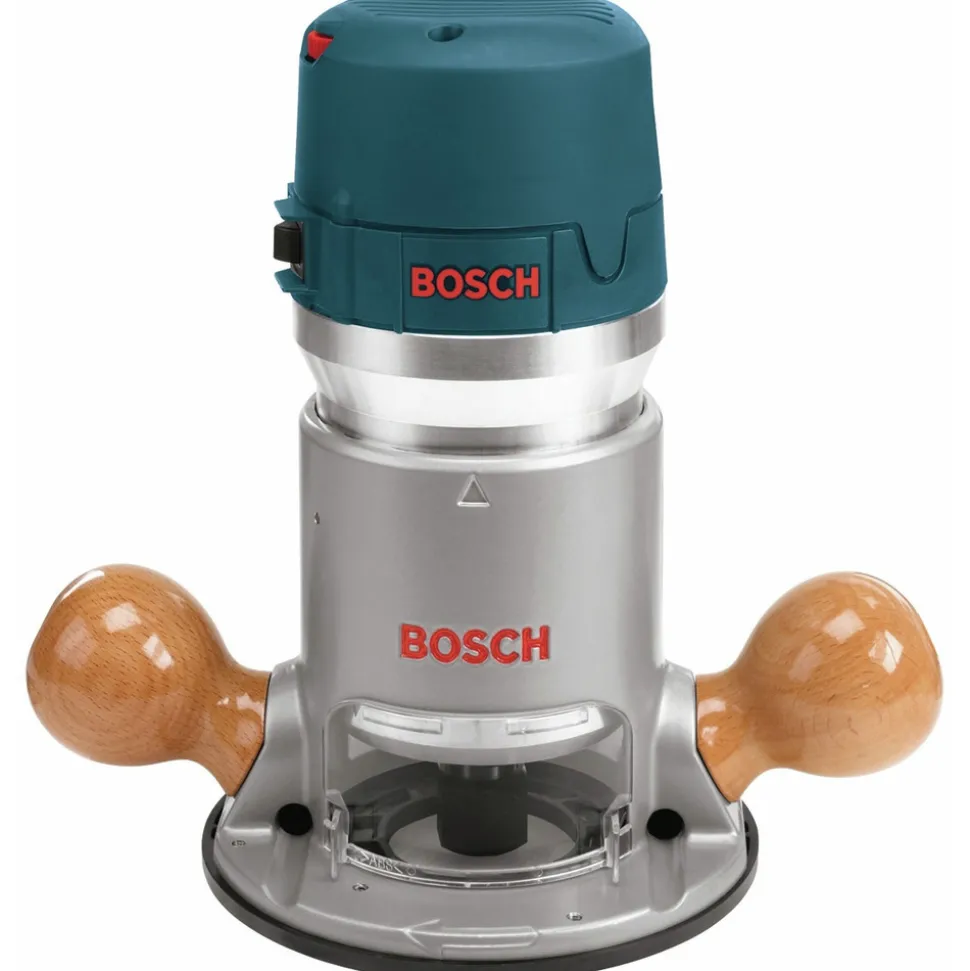

Bosch 1617EVS 2.25 HP Fixed-Base Electronic Router

Details

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router produces exacting cuts every time, thanks to a 12 Amp motor that combines ample power with adjustable speed settings. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. A precision centering system and 3-3/4 In. base opening enable swift maneuverability along the intended path. This tool is also one of the quietest routers in its class.

Powerful Variable-Speed Motor – The Bosch 1617EVS steers through even the toughest routing jobs with the powerful 2.25-horsepower, 12 Amp motor and its versatile speed range of 8,000 to 25,000 RPM. The variable-speed dial allows the operator to set the optimal speed for the task. And with built-in Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product.

Smooth Startup and Simple Operation – The Bosch 1617EVS delivers an integrated soft-start feature, so that the motor reduces torque upon startup for a smooth transition and easy handling. Its design adapts to let the user work with the switch and cord on the right or the left, for improved consistency and precision, as well as the confidence knowing that the motor won’t rotate during depth adjustment. The one-piece armature shaft maximizes accuracy and long-bit shank capacity in the router.

Features:

2.25 HP, 12 amp motor delivers 8000 – 25,000 RPM
Coarse and microfine bit depth adjustment system with the ability to reset the depth indicator – For fast, precise depth adjustment
Variable-speed dial – For matching speed to workpiece and task
Tool-free template guide adapter – For fast and easy template guide changes
Large 3-3/4 in. base opening plus 2 in. sub-base opening – Accepts large bits

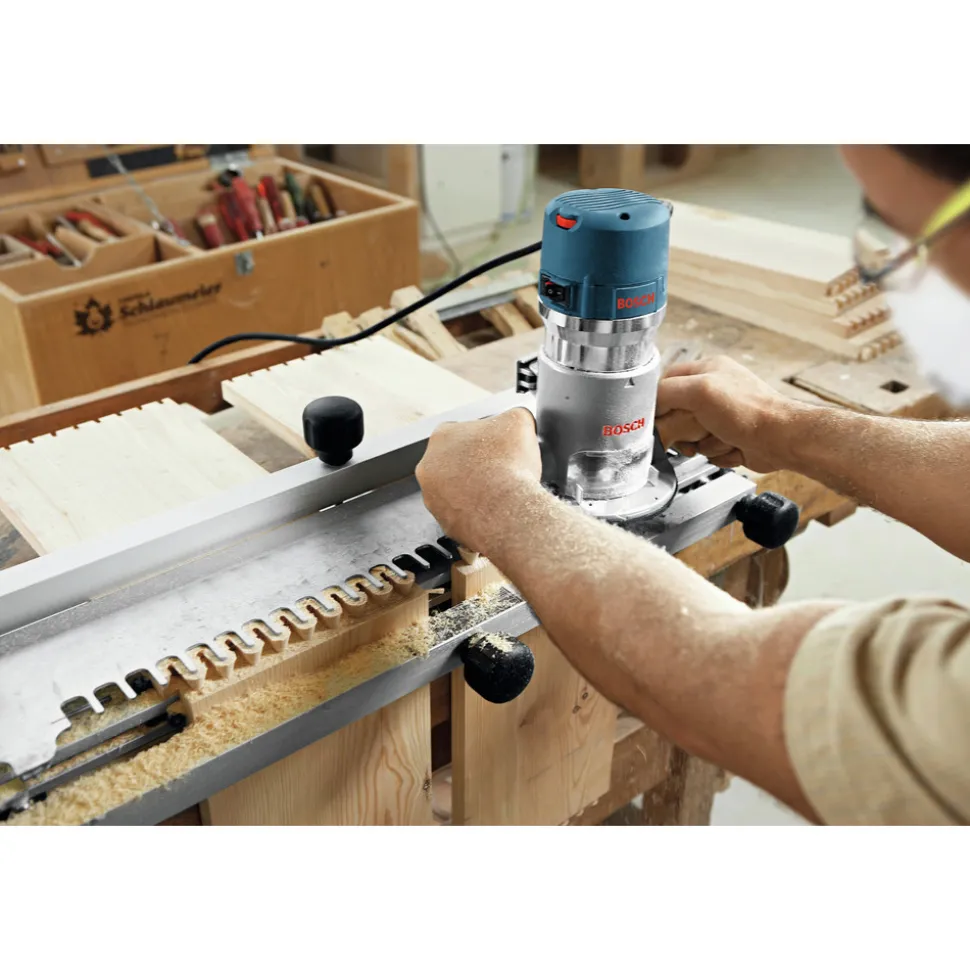

Exclusive precision centering design centers bit precisely – Makes it easy to keep bit on intended cut line when using jigs, templates, dovetail fixtures and similar guidance devices
Right or left switch location – For user preference and consistency (motor does not rotate during depth adjustment)
Classic hardwood handles – For comfort and beauty
One-piece armature shaft – For accuracy and long bit shank capacity
Soft start – Reduces start-up torque
Constant Response circuitry – Maintains constant speed under load, provides overload protection
This item may ship in the original manufacturer’s packaging

What’s Included:

2.25 HP Fixed-Base Electronic Router – 1617EVS
Motor – 16176
1/4 in. Self-Releasing Collet Chuck – 2 610 906 283
1/2 in. Self-Releasing Collet Chuck – 2 610 906 284
16mm Shaft Wrench – 2 610 991 388
Collet Nut Wrench – 2 610 992 417
Tool-Free Templet Guide Adapter – 2 610 991 370
10 ft. Flexible Rubber Cord
Chip Shield – 2 610 991 389
Fixed Base – RA1161
T-Handle Hex Height Adjustment Wrench – 2610923193
Pack of 3 10-24 Screws for Table Mounting – 2610925813

Power Source

Corded

Amperage

12

UL Safety

Yes

Wifi compatibility

No

Collet Capacity

1/4 in / 1/2 in / 3/8 in / 8 mm

Speed Settings

Variable

Bluetooth Compatibility

No

Depth Adjustment Range

1-5/8 in

Motor Type

Brushed

Depth Adjustment System

Micro-Fine Depth Adjustment

Switch Type

Toggle

Speed Controls

Yes

Base Opening

3-3/4 in

Base Type

Fixed

No-Load Speed (RPM)

8000 – 25000

CSA Safety

Yes

Handle Style

Dual Knob

Case included

No

Case Included

No

Shank Size

0.25 in / 0.50 in / 0.38 in / 0.31 in

Horsepower

2.25

Voltage

120V

Base Dimensions

6 in x 6 in

Cord Length

10 ft

ETL Safety

No

No-Load Speeds (RPM)

8000 – 25000

Length

6 in.

Width

10 in.

Height

7.75 in.

Depth

12.26 in.

Weight

8.3 lbs.

Warranty Term

1 Year
